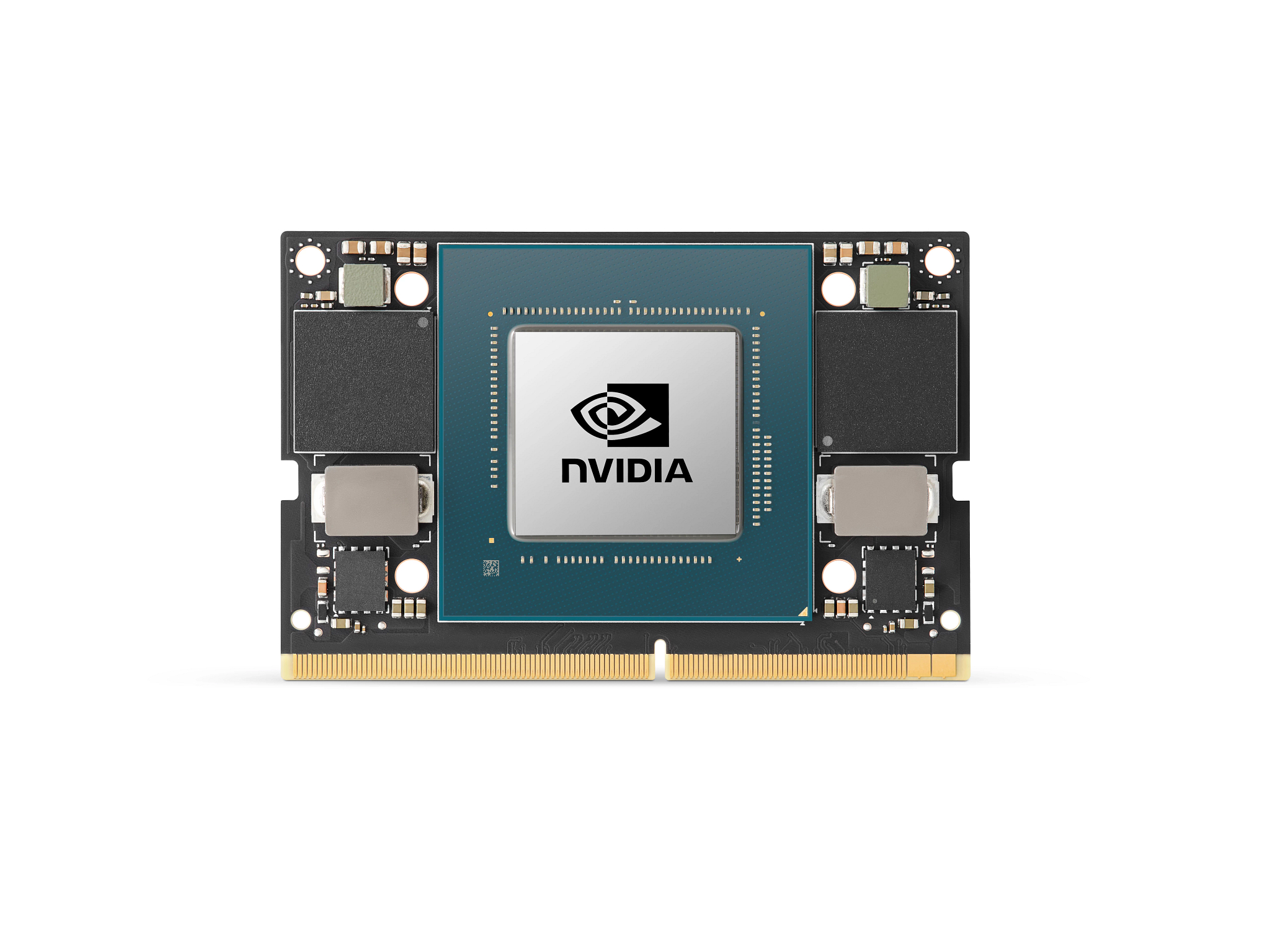

Jetson Orin NX Series
Experience the world’s most powerful AI computer for autonomous, power-efficient machines in the smallest Jetson form factor. It delivers up to 5x the performance and twice the NVIDIA® CUDA® cores of NVIDIA Jetson Xavier™ NX, plus high-speed interface support for multiple sensors. With up to 157 TOPS for multiple concurrent AI inference pipelines, Jetson Orin NX gives you big performance in an amazingly compact package.
Technical specifications
| Specification | Jetson Orin NX 16GB | Jetson Orin NX 8GB |
|---|---|---|
| AI performance | 157 TOPS | 117 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit, 2 MB L2 + 4 MB L3 | 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5 MB L2 + 4 MB L3 |
| Memory | 16 GB 128-bit LPDDR5, 102.4 GB/s | 8 GB 128-bit LPDDR5, 102.4 GB/s |
| Storage | No onboard storage, supports external NVMe | No onboard storage, supports external NVMe |
| Power | 10 W – 40 W (10 / 15 / 25 / 40 W modes) | 10 W – 40 W (10 / 15 / 25 / 40 W modes) |
| Connector | 260-pin SO-DIMM | 260-pin SO-DIMM |
| Dimensions | 69.6 mm x 45 mm | 69.6 mm x 45 mm |
These are the values in NVIDIA's current specification table, which labels them as Super performance; the introduction of the same page still quotes up to 100 TOPS at 10–25 W.
Source: NVIDIA – Jetson Orin
